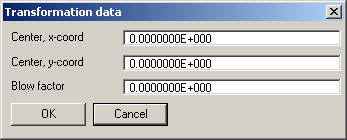

Transformation data Dialog

This dialog is opened when you press Blow..., Move..., or Rotate... in the Boundary dialog.

This dialog allows you to specify data for the selected transformation.
