Some solutions using finite elements

Electromagnetic field inside of the electrical machines with difficult geometry:

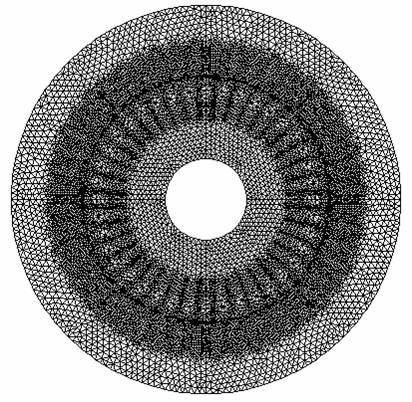

Finite element mesh with 22800 elements and 11563 nodes, double-cage induction machine, FE analysis

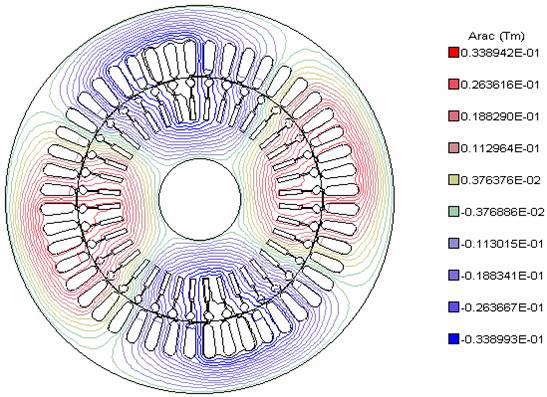

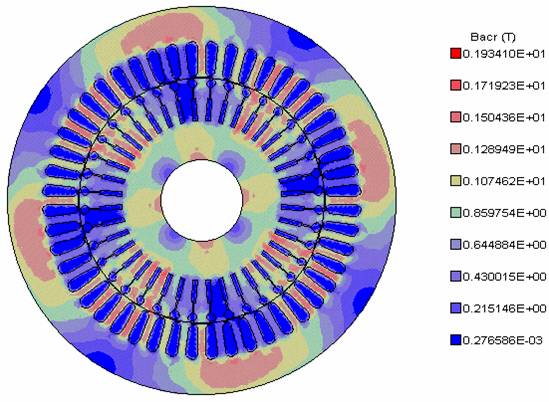

Field solution (real part of the magnetic vector potential - left, real part of the magnetic flux density - right), solution and visualisation using my own finite element code (FEM2D),

Nominal operating point.

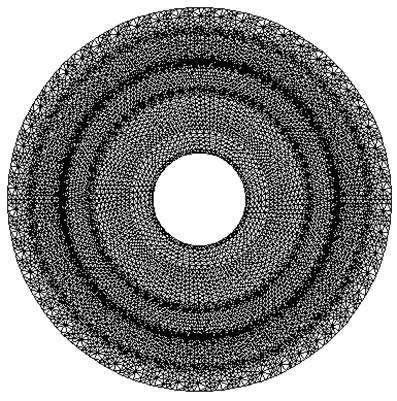

   Finite element mesh with 21360 elements and 10854 nodes, single-cage induction machine, FE analysis

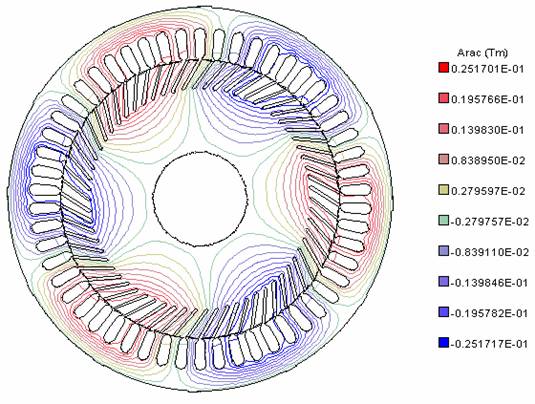

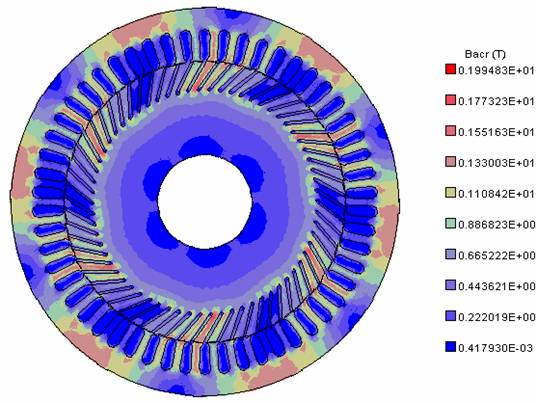

Field solution (real part of the magnetic vector potential - left, real part of the magnetic flux density - right), Nominal operating point.
